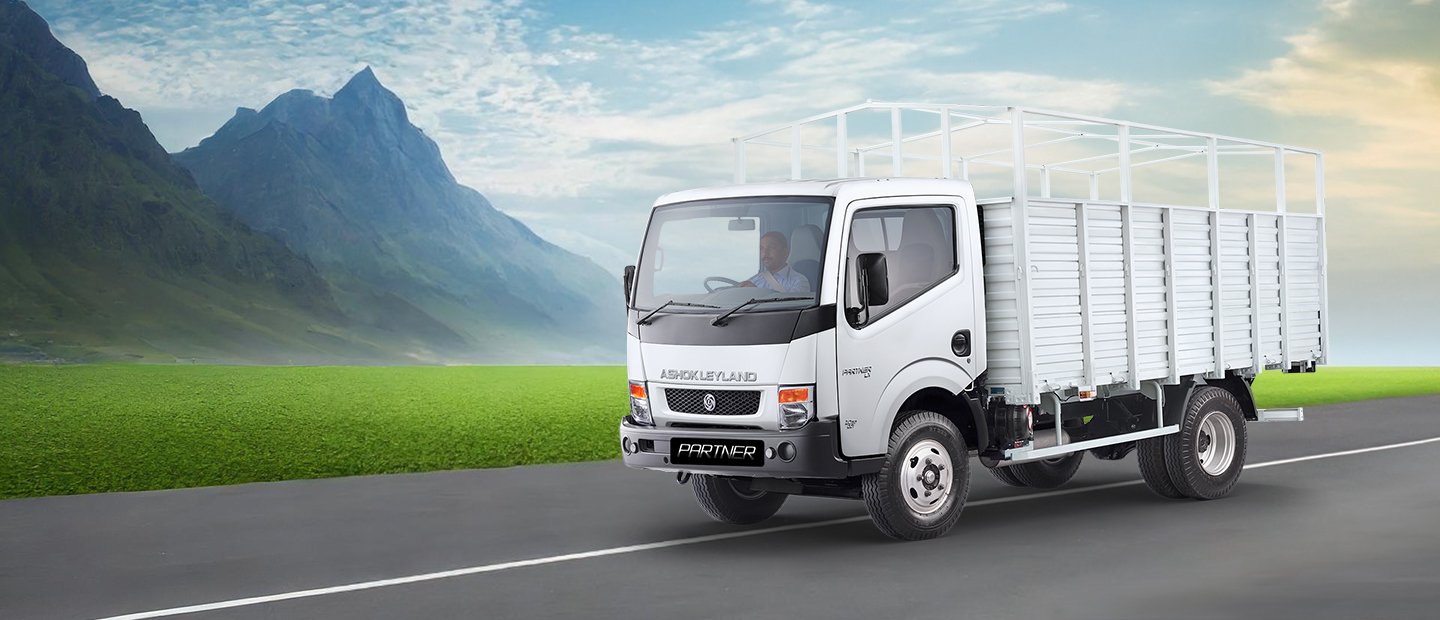

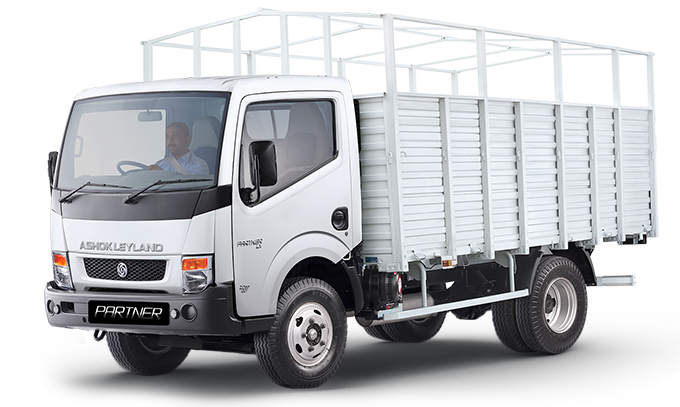

Partner 6 Tyre
Starts At
Know Your Vehicle
Engine
Engine:
ZD30 Diesel Engine with DDTi (Double Overhead Camshaft, Common Rail, Direct Injection, Turbo Intercooled)
Type: Turbocharged with Intercooler
Type: Turbocharged with Intercooler
Clutch
310 mm Diameter, Diaphragm Push Type, Single Dry Plate, Hydraulic actuated
Steering
Power Steering
Weight
Weight
GVW (Gross Vehicle Weight): 7490 kgPayload Capacity: Up to 4885 kg
Variant Type
CBC, FSD, HSD

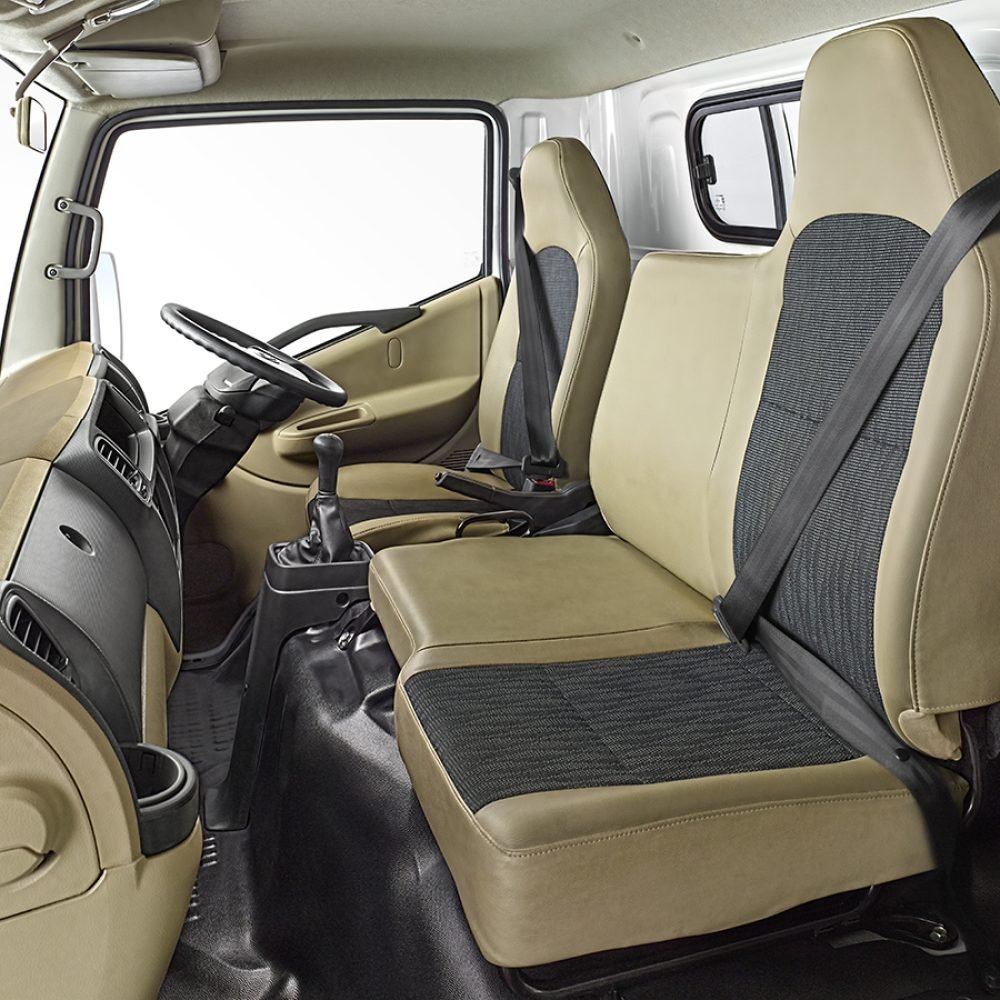

Interior Gallery

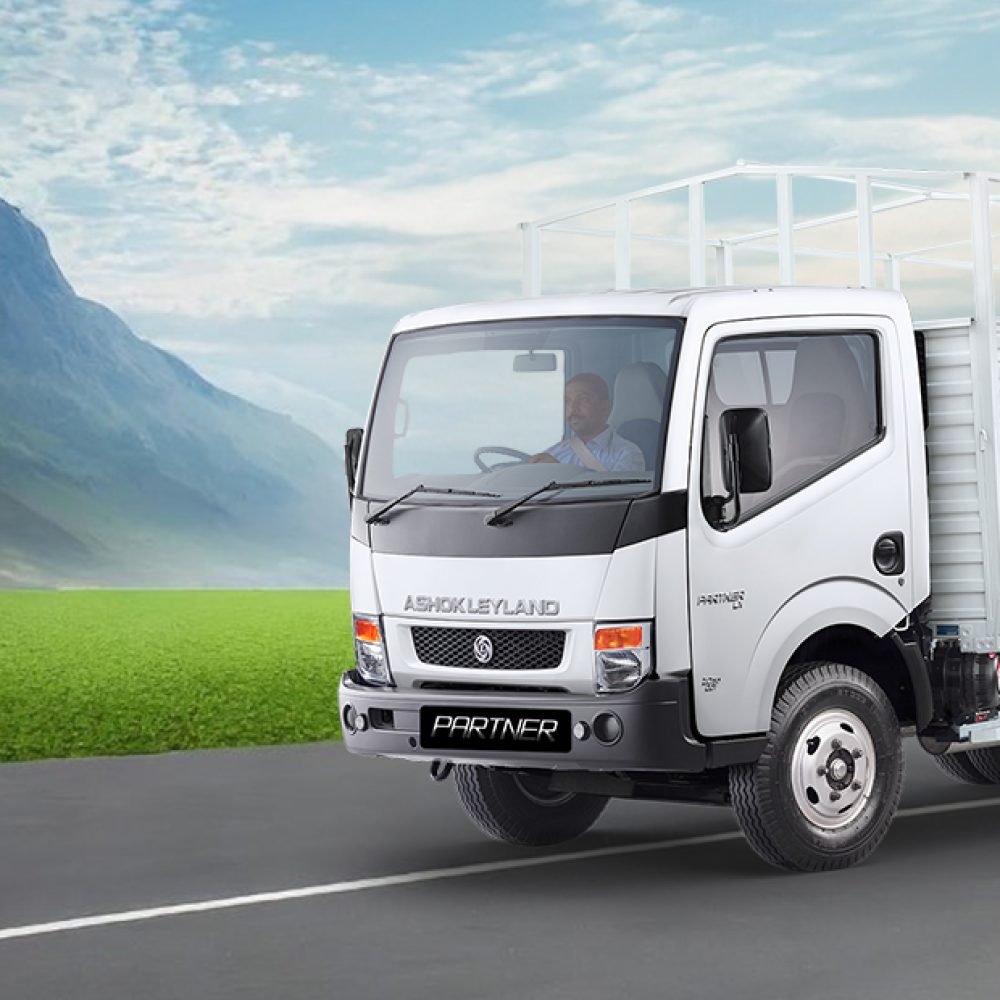

Exterior Gallery
Technical specifications
Partner Load Body Variants – Comparison
| Specification | Partner 17 ft ₹ 18.14 L |
Partner 14 ft ₹ 17.47 L |
Partner 11 ft ₹ 16.18 L |
|---|---|---|---|
| ENGINE | |||
| Engine | ZD30 Diesel Engine with DDTi (DOHC, CRDi, Turbo Intercooled) | ZD30 Diesel Engine with DDTi (DOHC, CRDi, Turbo Intercooled) | ZD30 Diesel Engine with DDTi (DOHC, CRDi, Turbo Intercooled) |
| Engine Type | Turbo Charged Intercooler | Turbo Charged Intercooler | Turbo Charged Intercooler |
| Max Power | 103 kW (140 hp) @ 2750 rpm | 103 kW (140 hp) @ 2750 rpm | 103 kW (140 hp) @ 2750 rpm |
| Max Torque | 360 Nm @ 1350–2750 rpm | 360 Nm @ 1350–2750 rpm | 360 Nm @ 1350–2750 rpm |
| Fuel Type | Diesel | Diesel | Diesel |
| CLUTCH | |||
| Clutch Type | 310 mm Diameter, Diaphragm Push Type, Single Dry Plate, Hydraulic Actuated | 310 mm Diameter, Diaphragm Push Type, Single Dry Plate, Hydraulic Actuated | 310 mm Diameter, Diaphragm Push Type, Single Dry Plate, Hydraulic Actuated |
| SUSPENSION | |||
| Front Suspension | Parabolic, Overslung with Double Acting Shock Absorbers | Parabolic, Overslung with Double Acting Shock Absorbers | Parabolic, Overslung with Double Acting Shock Absorbers |
| Rear Suspension | Semi-Elliptic (Main), Overslung with Double Acting Shock Absorbers | Semi-Elliptic (Main), Overslung with Double Acting Shock Absorbers | Semi-Elliptic (Main), Overslung with Double Acting Shock Absorbers |
| BRAKES | |||
| Brake Type | Air Brakes | Vacuum Assisted Hydraulic Brakes | Vacuum Assisted Hydraulic Brakes |
| WEIGHT & DIMENSIONS | |||
| GVW | 7490 kg | 7490 kg | 7490 kg |
| Rated Payload | 4640 kg | 4885 kg | 4775 kg |
| Overall Length | 6950 mm | 5170 mm | 3320 mm |
| Overall Height | 2870 mm | 2240 mm | 2240 mm |
| Wheelbase | 3955 mm | 2820 mm | 3320 mm |
| Load Body / Cargo Deck (L × B × H) | 5261 × 2200 × 1845 mm | 3415 × 2060 × 460 mm | 4230 × 2060 × 460 mm |
| Loading Height | 1090 mm | 1042 mm | 1035 mm |
| STEERING | |||
| Steering Type | Power Steering | Power Steering | Power Steering |
| VARIANT TYPES | CBC, FSD, HSD | CBC, FSD, HSD | CBC, FSD, HSD |
