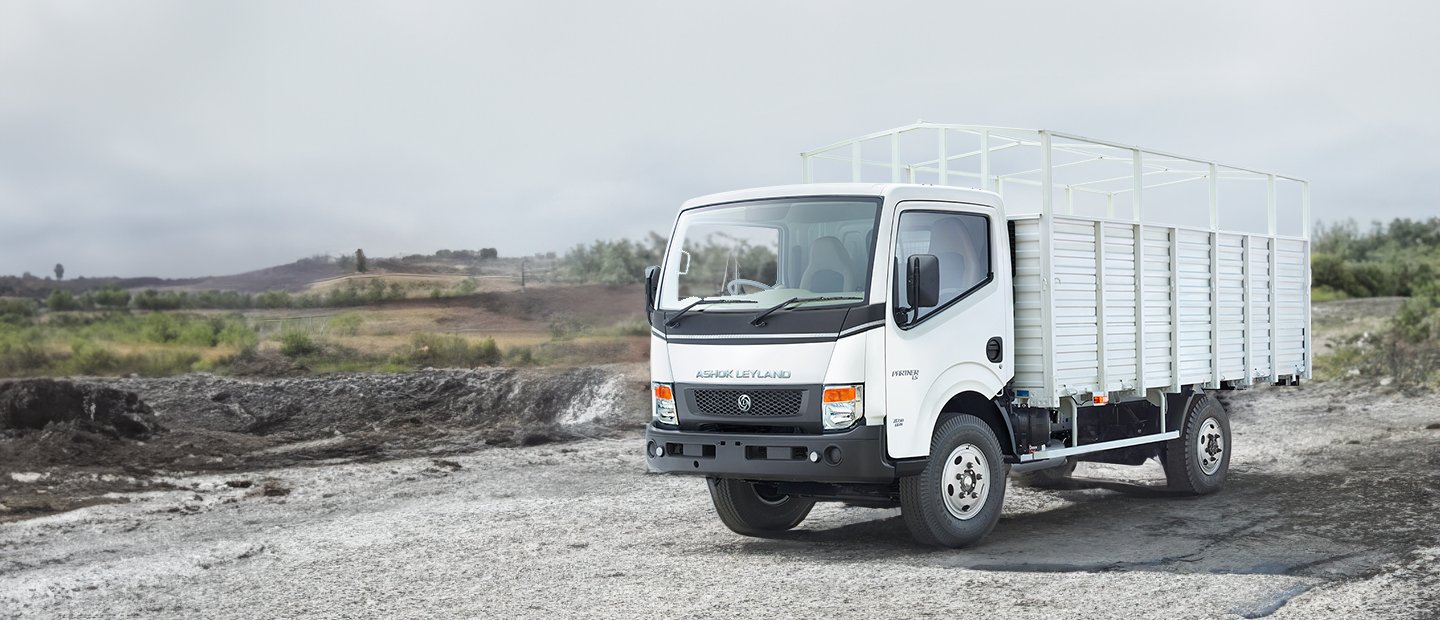

Partner 4 Tyre
Starts At
Know Your Vehicle
Engine
Engine:
ZD30 Diesel Engine with DDTi (Double Overhead Camshaft, Common Rail, Direct Injection, Turbo Intercooled)
Maximum Power Output: 103 kW (140 hp) @ 2750 rpm
Maximum Torque: 360 Nm @ 1350–2750 rpm
Maximum Power Output: 103 kW (140 hp) @ 2750 rpm
Maximum Torque: 360 Nm @ 1350–2750 rpm
Clutch
310 mm Diameter, Diaphragm, Push type, Single dry plate , Hydraulic actuated
Steering
Power Steering
Weight
GVW (Gross Vehicle Weight):
6250 / 7200 kg
Payload Capacity: 3760 / 4565 kg
Payload Capacity: 3760 / 4565 kg

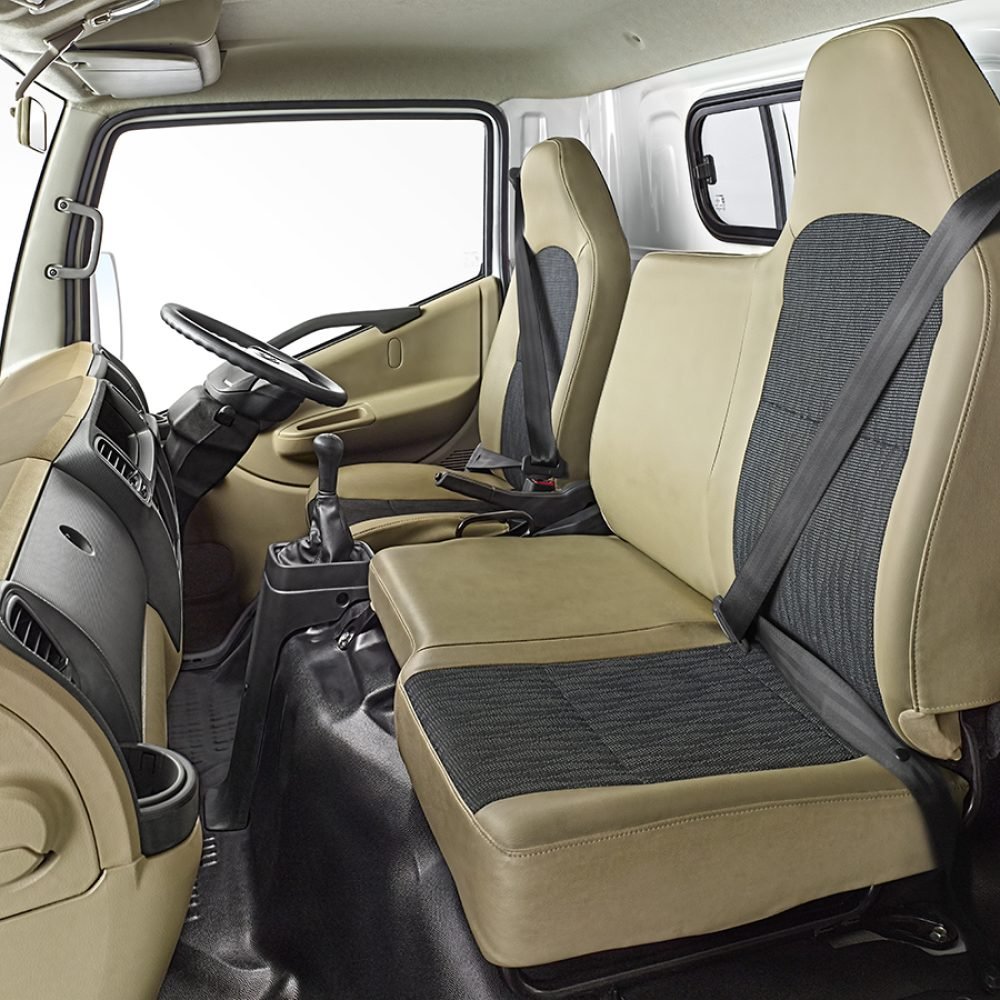

Interior Gallery

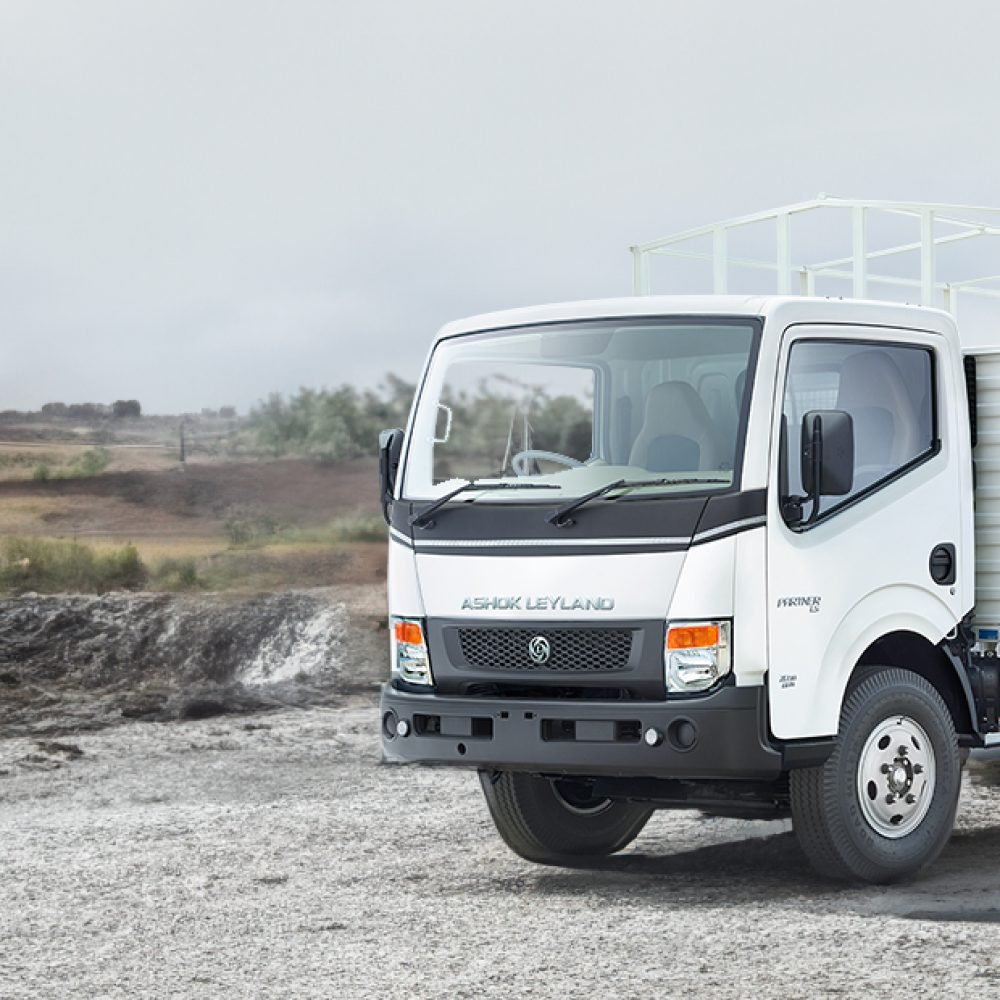

Exterior Gallery
Technical specifications
Partner LS – Variant Comparison
| Specification | Partner LS 14 ft LB ₹ 16.79 L |
Partner LS 10 ft LB ₹ 15.95 L |
|---|---|---|
| ENGINE | ||
| Engine | ZD30 Diesel Engine with DDTi (DOHC, CRDi, Turbo Intercooled) | ZD30 Diesel Engine with DDTi (DOHC, CRDi, Turbo Intercooled) |
| Fuel Type | Diesel | Diesel |
| Max Power | 103 kW (140 hp) | 103 kW (140 hp) |
| Max Torque | 360 Nm | 360 Nm |
| WEIGHT | ||
| Gross Vehicle Weight (GVW) | 7200 kg | 6250 kg |
| Rated Payload (FSD) | 4565 kg | 3760 kg |
| Rated Payload (HSD) | 4425 kg | 3625 kg |
| Kerb Weight (CBC) | 2260 kg | 2270 kg |
| DIMENSIONS | ||
| Load Body Length | 4230 mm | 3160 mm |
| Load Body Width (HSD) | 2060 mm | 1960 mm |
| Side Deck Height | FSD: 460 mm HSD: 1840 mm |
FSD: 460 mm HSD: 1840 mm |
| SUSPENSION | ||
| Front Suspension | Parabolic, Overslung with Double Acting Shock Absorbers | Parabolic, Overslung with Double Acting Shock Absorbers |
| Rear Suspension | Parabolic, Overslung with Double Acting Shock Absorbers | Parabolic, Overslung with Double Acting Shock Absorbers |
| STEERING | ||
| Steering Type | Power Steering | Power Steering |
| CLUTCH | ||
| Clutch Type | 310 mm Diameter, Diaphragm Push Type, Single Dry Plate, Hydraulic Actuated | 310 mm Diameter, Diaphragm Push Type, Single Dry Plate, Hydraulic Actuated |
